Hauj lwm lawm

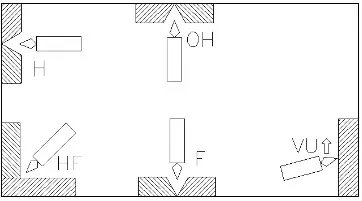

J506Fe yog cov pa roj carbon steel vuam electrode uas muaj Fe hmoov thiab qis-hydrogen potassium txheej, haum rau vuam hauv txhua txoj haujlwm. Ob leeg AC thiab DC tam sim no siv tau. Nws nthuav tawm cov kev ua haujlwm vuam zoo heev, uas yog tus yam ntxwv ntawm tus arc du, qib qis spatter, thiab yooj yim slag tshem tawm. Cov hlau deposited boasts siab deposition efficiency thiab zoo txhua yam khoom.

Lub hom phiaj

Cov khoom no yog qhov zoo tagnrho rau kev ua haujlwm zoo vuam cov qauv tseem ceeb ua los ntawm cov hlau tsis muaj hlau thiab cov hlau tsis tshua muaj hlau.

Chemical Composition (%)

Tshuaj muaj pes tsawg leeg	C	Mn	Si	S	P	Ni	Cr	Mo	V
Piv txwv tus nqi	0.077	1.07	0.54	0.005	0.014	0.011	0.028	0.007	0.016

Mechanical Properties of Deposited Hlau

Cov khoom kuaj	Rm (N / hli²)	Rel (N / hli²)	A (%)	KV₂(J) -30 degree
Piv txwv tus nqi	550	455	32	156

Kev siv tam sim no (DC)

Txoj kab uas hla	Φ2.5	Φ3.2	Φ4.0	Φ5.0
Amperage	60 ~ 100	80 ~ 140	110 ~ 210	160 ~ 230

Cov kev ceev faj

1. Ua ntej vuam, vuam electrode yuav tsum tau ci ntawm 350 degree rau 1 teev los npaj rau kev siv.
2. Cov impurities xws li xeb, roj stains, thiab ya raws yuav tsum tau muab tshem tawm ntawm lub workpiece ua ntej vuam.
3. Thaum vuam, ua haujlwm nrog lub voj voog luv luv thiab qhov sib txawv nqaim.
